AES67/AES3 32+32-channel Bidirectional Converter

AES67/AES3 32+32-channel bidirectional converter

Bridging the Worlds of AES3 and AES67

Overview

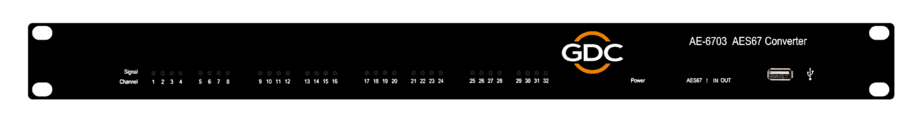

The AE-6703 AES67 Converter provides the flexibility for cinema audio products to communicate seamlessly between the AES3 and AES67 worlds. It offers an audio interface between legacy AES3 audio equipment and the next-generation AES67 devices such as the cinema media server.



The AE-6703 is a bidirectional converter capable of converting 32 channels of audio in each direction concurrently (total 64 channel processing). It allows 32 channels of AES3 audio input to be transmitted as AES67 network audio while at the same time allowing another 32 channels of AES67 network audio input to be output as AES3 audio. The AE-6703 AES67 Converter operates in the multicast mode based on the AES67 standard which is compatible with Dante, so it can communicate with related devices. The AE-6703 can be configured according to the user’s requirements via the supplied software application.

Specifications

  • 110 Ohm balanced

  • 44.1K, 48K, 88.2K, 96K
  • 4 x RJ-45
  • 4 x RJ-45
  • 2 x RJ-45
  • AC 100V – 240V, 1.0A, Max. 50 – 60Hz

  • DC 12V, 5.417A Max. 65W

  • DC 12V, 1.0A, Max.

  • 483 x 44 x 195 mm (1U)
  • 545 x 140 x 275mm

  • 3.2kg
