For a situation where more than 12 audio devices are required in a DTS:X for immersive sound IAB installed in a theater, multiple PSC series devices can be cascaded via an RS-232 interface connection, enabling sequential power delivery to an expanded range of audio devices.
General description
PSC series is a power sequence controller specially designed for digital cinema audio systems in movie theaters. The controller ensures sequential power supply for audio equipment such as audio decoders and power amplifiers. This will protect the equipment from damage caused by excessive current generated by turning on multiple audio equipment simultaneously. One PSC series can be connected to up to 12 devices for sequential power supply, or multiple PSC series can be cascaded into one series via RS-232 interface connection to achieve sequential power supply for audio equipment additional.
Key benefits
Rack Mount Design

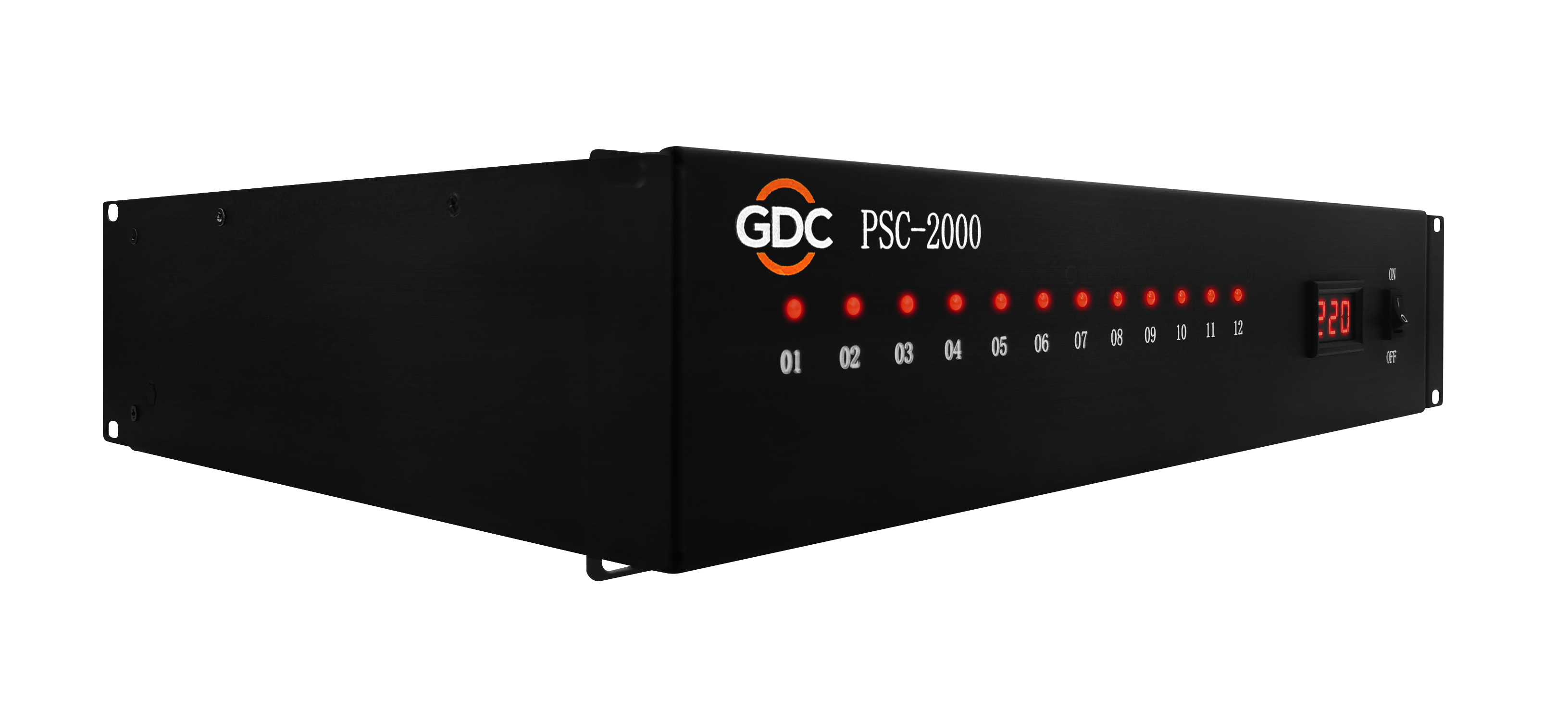

The PSC series is a 2U rack-mounted device designed for seamless installation of audio cabinets connected to audio equipment such as audio decoders and power amplifiers to achieve sequential power supply management ensuring optimal performance.
Cascade device
Flexible configurations
Adapt power supply management to your needs. The PSC Series app allows users to easily configure the number of available channels and set the on and off time intervals for each channel.
Multiple models and versions
The PSC series offers two series with four different model versions. The PSC-1000 series provides a maximum power supply of 10 A to 15 A per device, and the PSC-2000 series offers a maximum power supply of 20 A per device. At the same time, the U and I versions also feature different plug types for users in different regions to choose from, ensuring compatibility.
Specifications
PSC-1000 Series
- PSC-1000U
- PSC-1000I
| Dimensions | 483(W) x 298(D) x 88(H)mm |
| Weight | 5.0 kg |
| Operational temperature | 0°C to 45°C |
| Operational humidity | 20% to 90%, non-condensing |
| Operational altitude | 2,000m |
| Power requirements |
|
| Maximum consumption power |
|
| 10A |
|
| 15A |
|
| 20A | 0 |
| Network Support | TCP, UDP |
| Plug holder |
|
PSC-2000 Series
- PSC-2000U
- PSC-2000I
| Dimensions | 483(W) x 298(D) x 88(H)mm |
| Weight | 5.2 kg |
| Operational temperature | 0°C to 45°C |
| Operational humidity | 20% to 90%, non-condensing |
| Operating altitude | 2,000m |
| Power requirements |
|
| Maximum consumption power |
|
| 10A |
|
| 15A | 0 |
| 20A |
|
| Network support | TCP, UDP |
| Plug holder |
|
System configuration
